الهبوط المزدوج: ما بعد عتبة الاستيفاء

import azimuth_nb as azimuth

env = azimuth.setup(SLUG, lang=LANG, profile=PROFILE)


def say(en, ar_text):
    # One program, two voices: the Arabic build prints the Arabic line.
    print(ar_text if env.lang == "ar" else en)


def t(en, ar_text):
    # Figure text. matplotlib draws glyphs one by one, left to right, so raw
    # Arabic comes out as isolated letters in reversed order. Two steps fix it:
    # reshape joins the letters into their connected forms, and get_display
    # puts the line in visual order (Latin runs such as "p = n" stay readable).
    # Reshaping also drops the vowel marks, which matplotlib cannot position.
    if env.lang != "ar":
        return en
    import arabic_reshaper
    from bidi.algorithm import get_display

    return get_display(arabic_reshaper.reshape(ar_text))

import numpy as np

cfg = env.cfg
n_train = cfg["n_train"]
n_test = cfg["n_test"]
dim = cfg["dim"]
noise = cfg["noise"]
p_max = cfg["p_max"]
trials = cfg["trials"]


def make_task(seed, n=n_train, label_noise=noise):
    # One trial = one hidden target function, one dataset, one bank of random
    # features. Every model width in a trial reuses the SAME data and the SAME
    # features (the first p columns), so the only thing that varies along the
    # sweep is the parameter count.
    rng = np.random.default_rng(seed)
    a = rng.normal(size=dim) / np.sqrt(dim)
    b = rng.normal(size=(4, dim))

    def target(x):
        # A linear part plus a few saturating bumps. Random ReLU features can
        # approximate this well, but never exactly.
        return 2.0 * (x @ a) + np.tanh(x @ b.T).sum(axis=1)

    x_tr = rng.normal(size=(n, dim))
    x_te = rng.normal(size=(n_test, dim))
    y_tr = target(x_tr) + label_noise * rng.normal(size=n)
    y_te = target(x_te)  # the test set is clean: we measure the real function
    w_feat = rng.normal(size=(p_max, dim)) / np.sqrt(dim)
    return {"x_tr": x_tr, "y_tr": y_tr, "x_te": x_te, "y_te": y_te, "w_feat": w_feat}


def features(x, w_feat, p):
    # Random ReLU features: a fixed, untrained first layer of width p.
    return np.maximum(x @ w_feat[:p].T, 0.0) / np.sqrt(p)


def fit(task, p, ridge=0.0):
    # Least squares on the first p features. With ridge = 0 and p > n there are
    # infinitely many exact fits; lstsq returns the one with the smallest norm.
    f_tr = features(task["x_tr"], task["w_feat"], p)
    f_te = features(task["x_te"], task["w_feat"], p)
    y = task["y_tr"]
    n = len(y)
    if ridge == 0.0:
        w = np.linalg.lstsq(f_tr, y, rcond=None)[0]
    elif p <= n:
        w = np.linalg.solve(f_tr.T @ f_tr + ridge * np.eye(p), f_tr.T @ y)
    else:
        w = f_tr.T @ np.linalg.solve(f_tr @ f_tr.T + ridge * np.eye(n), y)
    train_mse = float(np.mean((f_tr @ w - y) ** 2))
    test_mse = float(np.mean((f_te @ w - task["y_te"]) ** 2))
    return train_mse, test_mse, w


def width_grid(n):
    # Log-spaced widths from tiny to p_max, plus a dense band around p = n so
    # the threshold is sampled where the curve moves fastest.
    coarse = np.geomspace(5, p_max, cfg["grid_points"]).round().astype(int)
    band = np.arange(int(0.9 * n), int(1.1 * n) + 1, max(1, n // 40))
    return np.unique(np.concatenate([coarse, band, [n]]))


tasks = [make_task(cfg["seed"] + k) for k in range(trials)]
widths = width_grid(n_train)
target_var = round(float(np.mean([np.var(tk["y_te"]) for tk in tasks])), 2)

say(
    f"{trials} trials · {n_train} training points · {n_test} test points · "
    f"inputs in {dim} dimensions · label noise σ = {noise}",
    f"{trials} تجارب · {n_train} نقطة تدريب · {n_test} نقطة اختبار · "
    f"مدخلات في {dim} بُعداً · ضجيج التسميات σ = {noise}",
)
say(
    f"{len(widths)} model widths, from {widths[0]} to {widths[-1]} features",
    f"{len(widths)} عرضاً للنموذج، من {widths[0]} إلى {widths[-1]} سمة",
)
say(
    f"For scale: always predicting the mean scores a test MSE of {target_var:.2f}",
    f"للمقارنة: نموذج يتنبّأ دائماً بالمتوسط يحصل على خطأ اختبار قدره {target_var:.2f}",
)

import matplotlib.pyplot as plt


def sweep(ridge=0.0, n=n_train, task_list=None):
    task_list = tasks if task_list is None else task_list
    grid = width_grid(n)
    train = np.zeros((len(task_list), len(grid)))
    test = np.zeros_like(train)
    for i, tk in enumerate(task_list):
        for j, p in enumerate(grid):
            train[i, j], test[i, j], _ = fit(tk, int(p), ridge)
    # Median over trials: exactly at p = n one unlucky trial can be off by
    # orders of magnitude, and a mean would let that one trial draw the curve.
    return grid, np.median(train, axis=0), np.median(test, axis=0)


grid, train_curve, test_curve = sweep()

under = grid < n_train
best_idx = int(np.argmin(np.where(under, test_curve, np.inf)))
sweet_spot_p = int(grid[best_idx])
sweet_spot_test = round(float(test_curve[best_idx]), 2)
threshold_test = round(float(test_curve[grid == n_train][0]), 1)
widest_test = round(float(test_curve[-1]), 2)
# Captured values are rounded here, because prose quotes them verbatim.
peak_ratio = round(threshold_test / sweet_spot_test)
second_descent = round(threshold_test / widest_test)
widest_vs_sweet_spot = round(widest_test / sweet_spot_test, 2)
train_r2_widest = 1.0 - float(train_curve[-1]) / float(
    np.mean([np.var(tk["y_tr"]) for tk in tasks])
)

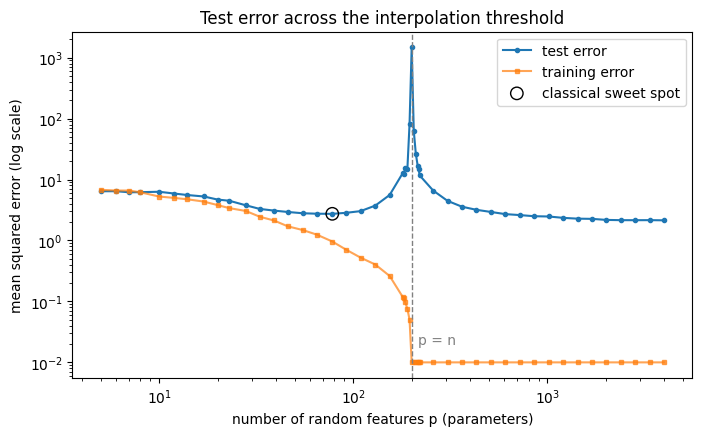

fig, ax = plt.subplots(figsize=(8, 4.5))
ax.plot(grid, test_curve, "o-", ms=3, label=t("test error", "خطأ الاختبار"))
# Past p = n the training error is zero to machine precision (around 1e-28).
# Drawn at its true value it would flatten everything else, so it is pinned to
# a floor: a point on the floor means "exactly fitted".
floor = 1e-2
ax.plot(
    grid,
    np.maximum(train_curve, floor),
    "s-",
    ms=3,
    alpha=0.7,
    label=t("training error", "خطأ التدريب"),
)
ax.axvline(n_train, color="grey", ls="--", lw=1)
ax.text(n_train * 1.08, floor * 2, "p = n", color="grey")
ax.scatter(
    [sweet_spot_p],
    [sweet_spot_test],
    s=80,
    facecolors="none",
    edgecolors="black",
    zorder=5,
    label=t("classical sweet spot", "النقطة المثلى الكلاسيكية"),
)
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlabel(t("number of random features p (parameters)", "عدد السمات العشوائية p (المعاملات)"))
ax.set_ylabel(t("mean squared error (log scale)", "متوسط مربع الخطأ (مقياس لوغاريتمي)"))
ax.set_title(
    t(
        "Test error across the interpolation threshold",
        "خطأ الاختبار عبر عتبة الاستيفاء",
    )
)
ax.legend()
plt.show()

say(
    f"classical sweet spot   p = {sweet_spot_p:5d}   test MSE {sweet_spot_test:.3f}",
    f"النقطة المثلى الكلاسيكية   p = {sweet_spot_p:5d}   خطأ الاختبار {sweet_spot_test:.3f}",
)
say(
    f"interpolation threshold p = {n_train:5d}   test MSE {threshold_test:.3f}",
    f"عتبة الاستيفاء           p = {n_train:5d}   خطأ الاختبار {threshold_test:.3f}",
)
say(
    f"widest model           p = {int(grid[-1]):5d}   test MSE {widest_test:.3f}   "
    f"training MSE {train_curve[-1]:.1e}",
    f"أعرض نموذج              p = {int(grid[-1]):5d}   خطأ الاختبار {widest_test:.3f}   "
    f"خطأ التدريب {train_curve[-1]:.1e}",
)

# The size of the fitted weights, across the same sweep. Large weights mean the
# model reacts violently to small changes in its input — including the noise.
norm_curve = np.median([[np.linalg.norm(fit(tk, int(p))[2]) for p in grid] for tk in tasks], axis=0)
threshold_norm = round(float(norm_curve[grid == n_train][0]))
widest_norm = round(float(norm_curve[-1]))
sweet_spot_norm = round(float(norm_curve[best_idx]))

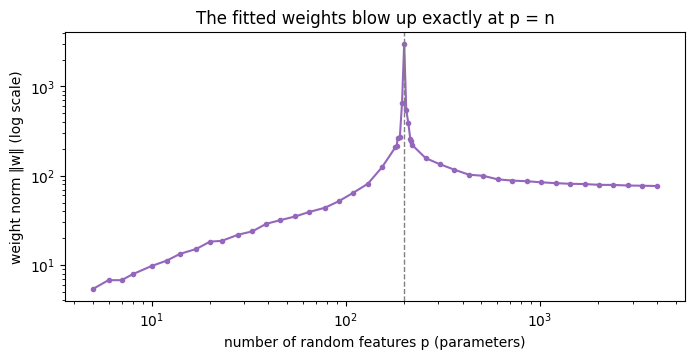

fig, ax = plt.subplots(figsize=(8, 3.5))
ax.plot(grid, norm_curve, "o-", ms=3, color="tab:purple")
ax.axvline(n_train, color="grey", ls="--", lw=1)
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlabel(t("number of random features p (parameters)", "عدد السمات العشوائية p (المعاملات)"))
ax.set_ylabel(t("weight norm ‖w‖ (log scale)", "معيار الأوزان ‖w‖ (مقياس لوغاريتمي)"))
ax.set_title(
    t(
        "The fitted weights blow up exactly at p = n",
        "الأوزان المُلائَمة تنفجر عند p = n تماماً",
    )
)
plt.show()

say(
    f"weight norm at the sweet spot   p = {sweet_spot_p:5d}: {sweet_spot_norm}",
    f"معيار الأوزان عند النقطة المثلى  p = {sweet_spot_p:5d}: {sweet_spot_norm}",
)
say(
    f"weight norm at the threshold    p = {n_train:5d}: {threshold_norm}",
    f"معيار الأوزان عند العتبة         p = {n_train:5d}: {threshold_norm}",
)
say(
    f"weight norm at the widest model p = {int(grid[-1]):5d}: {widest_norm}",
    f"معيار الأوزان عند أعرض نموذج     p = {int(grid[-1]):5d}: {widest_norm}",
)

# Past p = n there are infinitely many weight vectors with zero training error.
# lstsq picks the smallest one. Does ordinary gradient descent pick the same?
gd_task = tasks[0]
gd_p = cfg["gd_width"]
f_gd = features(gd_task["x_tr"], gd_task["w_feat"], gd_p)
y_gd = gd_task["y_tr"]
_, _, w_min_norm = fit(gd_task, gd_p)

w = np.zeros(gd_p)  # start at the origin, as the result depends on it
step = 1.0 / np.linalg.norm(f_gd, 2) ** 2
for _ in range(cfg["gd_steps"]):
    w -= step * f_gd.T @ (f_gd @ w - y_gd)

gd_train_mse = float(np.mean((f_gd @ w - y_gd) ** 2))
gd_cosine = round(float(w @ w_min_norm / (np.linalg.norm(w) * np.linalg.norm(w_min_norm))), 4)
say(
    f"p = {gd_p}: gradient descent reached training MSE {gd_train_mse:.1e}",
    f"عند p = {gd_p}: وصل الانحدار التدرّجي إلى خطأ تدريب {gd_train_mse:.1e}",
)
say(
    f"cosine similarity to the minimum-norm solution: {gd_cosine:.4f}",
    f"تشابه جيب التمام مع الحلّ ذي المعيار الأصغر: {gd_cosine:.4f}",
)
say(
    f"weight norms — gradient descent {np.linalg.norm(w):.1f}, "
    f"minimum norm {np.linalg.norm(w_min_norm):.1f}",
    f"معيار الأوزان — الانحدار التدرّجي {np.linalg.norm(w):.1f}، "
    f"الحلّ الأصغر {np.linalg.norm(w_min_norm):.1f}",
)

# Same widest model, same inputs, but the training labels are shuffled, so
# there is no function left to learn. Can it still fit them?
shuffled = []
for k, tk in enumerate(tasks):
    rng = np.random.default_rng(cfg["seed"] + 1000 + k)
    shuffled.append(dict(tk, y_tr=rng.permutation(tk["y_tr"])))

mem = np.array([fit(tk, p_max)[:2] for tk in shuffled])
shuffled_train_mse = float(np.median(mem[:, 0]))
shuffled_test_mse = round(float(np.median(mem[:, 1])), 2)

say(
    f"p = {p_max}, true labels:     training MSE {train_curve[-1]:.1e}   test MSE {widest_test:.3f}",
    f"عند p = {p_max}، التسميات الحقيقية:  خطأ التدريب {train_curve[-1]:.1e}   خطأ الاختبار {widest_test:.3f}",
)
say(
    f"p = {p_max}, shuffled labels: training MSE {shuffled_train_mse:.1e}   test MSE {shuffled_test_mse:.3f}",
    f"عند p = {p_max}، التسميات المخلوطة:  خطأ التدريب {shuffled_train_mse:.1e}   خطأ الاختبار {shuffled_test_mse:.3f}",
)
say(
    f"predicting the mean:          test MSE {target_var:.3f}",
    f"التنبّؤ بالمتوسط:                    خطأ الاختبار {target_var:.3f}",
)

ridge = cfg["ridge"]
_, ridge_train_curve, ridge_test_curve = sweep(ridge=ridge)

ridge_threshold_test = round(float(ridge_test_curve[grid == n_train][0]), 2)
ridge_widest_test = round(float(ridge_test_curve[-1]), 2)
ridge_vs_sweet_spot = round(ridge_widest_test / sweet_spot_test, 2)
# How much does the regularized curve ever climb as p grows? 1.0 = never.
ridge_worst_climb = round(
    float(np.max(ridge_test_curve / np.minimum.accumulate(ridge_test_curve))), 2
)

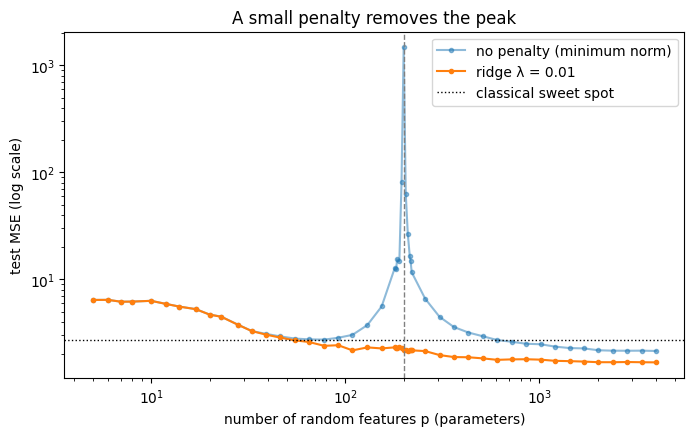

fig, ax = plt.subplots(figsize=(8, 4.5))
ax.plot(
    grid,
    test_curve,
    "o-",
    ms=3,
    alpha=0.5,
    label=t("no penalty (minimum norm)", "بلا عقوبة (المعيار الأصغر)"),
)
ax.plot(
    grid,
    ridge_test_curve,
    "o-",
    ms=3,
    label=t(f"ridge λ = {ridge}", f"عقوبة الحافّة λ = {ridge}"),
)
ax.axhline(
    sweet_spot_test,
    color="black",
    ls=":",
    lw=1,
    label=t("classical sweet spot", "النقطة المثلى الكلاسيكية"),
)
ax.axvline(n_train, color="grey", ls="--", lw=1)
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlabel(t("number of random features p (parameters)", "عدد السمات العشوائية p (المعاملات)"))
ax.set_ylabel(t("test MSE (log scale)", "خطأ الاختبار (مقياس لوغاريتمي)"))
ax.set_title(t("A small penalty removes the peak", "عقوبة صغيرة تُزيل القمّة"))
ax.legend()
plt.show()

say(
    f"at p = n:      no penalty {threshold_test:.3f}   ridge {ridge_threshold_test:.3f}",
    f"عند p = n:      بلا عقوبة {threshold_test:.3f}   مع الحافّة {ridge_threshold_test:.3f}",
)
say(
    f"widest model:  no penalty {widest_test:.3f}   ridge {ridge_widest_test:.3f}   "
    f"(classical sweet spot {sweet_spot_test:.3f})",
    f"أعرض نموذج:     بلا عقوبة {widest_test:.3f}   مع الحافّة {ridge_widest_test:.3f}   "
    f"(النقطة المثلى الكلاسيكية {sweet_spot_test:.3f})",
)
say(
    f"largest climb of the ridge curve above its running best: ×{ridge_worst_climb:.2f}",
    f"أكبر صعود لمنحنى الحافّة فوق أفضل قيمة سبقته: ×{ridge_worst_climb:.2f}",
)

# The control first: if the widest model did not actually interpolate the
# training set, the "second descent" would be an underfit model, not a
# memorizing one, and the comparison would show nothing.
interpolates_ok = env.check("widest-model-interpolates", train_r2_widest)
peak_ok = env.check("peak-at-threshold", peak_ratio)
descent_ok = env.check("second-descent", second_descent)

receipt = env.receipt()
